In Stock

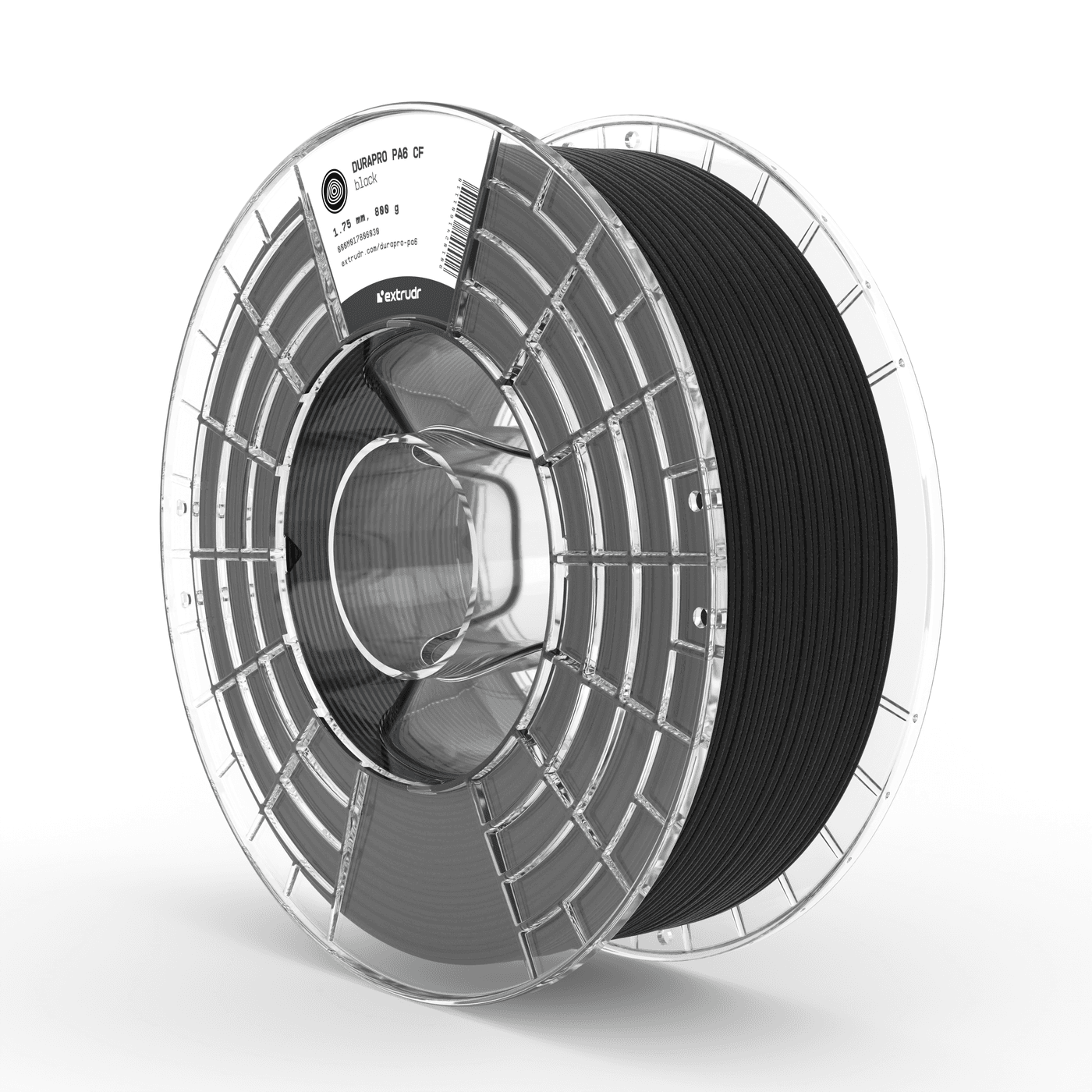

DuraPro PA6 CF is a carbon fiber-reinforced polyamide built for demanding industrial applications. Unlike most reinforced materials, it retains genuinely high impact resistance, including no-break performance in unnotched testing, while offering enhanced heat resistance and very good chemical resistance. Reduced warping keeps parts dimensionally reliable during printing. A hardened nozzle is required, due to the abrasive nature of the carbon fiber content.
Genuine toughness for parts that need to withstand real mechanical stress, without sacrificing reliability.
A heat deflection temperature of 170°C (at 0.45 MPa), holds its shape reliably under serious thermal stress.
From the Austrian Alps, every Extrudr spool is manufactured with care, precision and strict EU standards.
From standard FDM printers to AMS and multi-material setups, Extrudr filament is built to work reliably with the printer you already own.
Engineered for dimensional accuracy and reliable prints, even on larger industrial parts.
Holds up against a broad range of chemicals and solvents, suited to parts that need to withstand real-world exposure.
DuraPro PA6 CF is compatible with all standard FDM printers on the market. Note: an enclosed print space is required, and a heated bed capable of reaching 80–100°C is recommended.
Yes. As with all carbon-fiber-reinforced materials, the abrasive content will gradually wear down a standard brass nozzle. We recommend a hardened nozzle (e.g., hardened steel or ruby) with a diameter of at least 0.6mm to prevent clogging and ensure smooth extrusion.
Yes. DuraPro PA6 CF is fully compatible with AMS (Automatic Material System) solutions, including the Bambu Lab AMS.
Yes. DuraPro PA6 CF is a hygroscopic material and should be dried before printing to achieve optimal print quality. We recommend drying for 8–12 hours at 65°C.
DuraPro PA6 CF offers notably higher impact resistance than DuraPro PA12 CF, including no-break performance in unnotched testing. However, it absorbs significantly more moisture (9% vs. 1.6% at saturation), meaning it requires more careful storage and drying to maintain performance. DuraPro PA6 CF is also not electrically insulating, unlike DuraPro PA12, due to its carbon fiber content.
Yes. DuraPro PA6 CF offers excellent suitability for outdoor use.
Yes. DuraPro PA6 CF offers very good resistance to a broad range of chemicals, suited to demanding industrial applications.
No. Carbon fiber reinforced filaments, including DuraPro PA6 CF, are not certified for food contact.
Compliance applies to the raw material, not the finished printed part. Any part intended for a regulated application must undergo separate certification by an accredited third-party laboratory. Requirements vary depending on intended use and applicable standards.
Store DuraPro PA6 CF in a dry room at room temperature (18–27°C / 65–80°F). Stored neatly, it is protected from dust and sunlight.
When stored correctly, DuraPro PA6 CF has a shelf life of 2 years.
Recommended settings for printers with a 0.4 mm nozzle. Max. 50% layer height. Optimal settings may vary between printers and are also dependent on environmental factors.
Our material profiles make printing easier and more reliable. The profiles are perfectly optimised for Extrudr filaments and deliver perfect results straight away. Simply select your printer and material, import the profile into your slicer, and you’re ready to go.
| Mechanical Properties | Method | Value | Rating |
|---|---|---|---|
| Tensile modulus (Young's modulus) | ISO 527-1 | 6000 MPa | Outstanding |
| Tensile strength at yield | ISO 527-1 | 120 MPa | Outstanding |
| Tensile stress at break | ISO 527-1 | 115 MPa | Outstanding |
| Elongation at break | ISO 527-1 | 3 % | Typical |
| Flexural modulus | ISO 178 | 5750 MPa | Outstanding |
| Flexural strength | ISO 178 | 160 MPa | Outstanding |
| Charpy notched impact strength (+23°C) | ISO 179-1eA | 7 kJ/m² | Good |
| Charpy notched impact strength (-30°C) | ISO 179-1eA | 5 kJ/m² | Typical |
| Charpy unnotched impact strength (+23°C) | ISO 179-1eU | 55 kJ/m² | Very Good |
| Charpy unnotched impact strength (-30°C) | ISO 179-1eU | 35 kJ/m² | Very Good |
| Thermal Properties | Method | Value | Rating |
|---|---|---|---|
| Heat deflection temp. (HDT/B) — 0.45 MPa | ISO 75-1 | 170 °C | Outstanding |
| Heat deflection temp. (HDT/A) — 1.8 MPa | ISO 75-1 | 145 °C | Outstanding |
| Vicat softening temp. (VST/B50) | ISO 306 | 178 °C | Outstanding |
| Melting point (Tm) | ISO 3146-C | 182 °C | Good |
| Glass transition temp. (Tg) | ISO 11357-1 (DSC) | 55 °C | Typical |
| Melt volume rate (MVR) — 235°C/5.0 kg | - | 3 cm³/10 min | Typical |
| Thermal decomposition temp. | - | ~>> 300 °C | - |
| CLTE — flow direction | - | 0.45 cm/cm/°C | Excellent |
| Physical Properties | Method | Value | Rating |
|---|---|---|---|
| Density | ISO 1183-1 | 1.17 g/cm³ | - |
| Water absorption (saturation, 23°C) | - | 9.2 % | Typical |
| Mould shrinkage | ISO 294-4 | 0.3–0.5 % | - |
| Special Properties | Method | Value | Rating |
|---|---|---|---|
| Flame retardant rating 1.5mm | - | HB (1.6 mm) (UL94) | - |
| Chemical resistance | - | Very Good | - |
